4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining
4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

大画像 :  4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

商品の詳細:
起源の場所: 湖南省、中国
ブランド名: SOLLROC
お支払配送条件:
最小注文数量: 1
価格: $100
連絡先

4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining

説明
重さ: 8.7kg 材料: 炭化鋼
処理タイプ: 熱処理・機械加工工程 サイズ: 4inch
シャンク: DHD340/SD4/QL40/M40 ビット直径: 125 mm
フラッシングホール: 2*18 計測ボタン: 8*14
前方のボタン: 7*13 ボタン径: 9.0 mm
ビット 顔形: ドロップセンター、凹、凸、ダブルゲージ、フラットフェイス ボタンの形状: ドーム型/ラウンド、パラボリック/セミバリスティック、バリスティック、シャープ、フラット
空気圧: 高気圧 穴あけ工具のタイプ: dthドリルビット
機械の互換性: 穴あけ工具
ハイライト:

4''-125mm DTH Drill Bits

,

Carburized Steel Button Bits

,

Water Well Drilling Down The Hole Bits

4" (125mm) DTH Drill Bit for Water Well Drilling & Mining
We manufacture and export high-quality DTH Hammers designed for superior performance in demanding drilling applications. Our hammers are precision-engineered using premium raw materials and advanced manufacturing techniques to ensure durability and reliability. Specifically designed for high-pressure drilling rigs, these DTH Hammers deliver exceptional performance across various technical specifications at competitive industry rates.
Technical Specifications
Bit Diameter Flushing Holes Gauge Buttons Front Buttons Weight (Kg)
125 mm (4 15/16") 2 * 18 mm 8 * 14 mm 7 * 13 mm 9.0
Bit Face Shape Selection
  • Drop Center Bit: Ideal for high penetration rates in soft to medium hard and fissured rock formations. Operates with low to medium air pressures and provides maximum hole deviation control.
  • Concave Face: Versatile all-round application bit for medium hard and homogeneous rock formations. Offers good hole deviation control and excellent flushing capacity.
  • Convex Face: Delivers high penetration rates in soft to medium-hard formations with low to medium air pressures. Provides maximum resistance to steel wash and reduces load on gauge buttons, though with less hole deviation control.
  • Double Gauge Face: Suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures with good resistance to steel wash.
  • Flat Face Bit: Perfect for hard to very hard and abrasive rock formations in high-pressure applications. Combines good penetration rates with excellent resistance to steel wash.
Carbide Button Shape Selection
  • Domed/Round Button: Typically used as gauge buttons, suitable for every abrasive and very hard formations.
  • Parabolic/Semi-Ballistic Buttons: Used as both gauge and front buttons, ideal for medium abrasive and hard formations.
  • Ballistic Button: Primarily used as front buttons for medium abrasive and medium hard formations. Can also serve as gauge buttons in soft rock conditions.
  • Sharp Button: Designed as front buttons for soft formations where fast penetration rates are achievable.
  • Flat Button: Used as protection buttons to reduce wear on rubbing surfaces of DTH bits.
Shipping & Packaging
Shipping Methods: Available by Air, Sea, or Express delivery.
Packaging: Securely packed in ply-wooden cases with pallets for safe transportation.

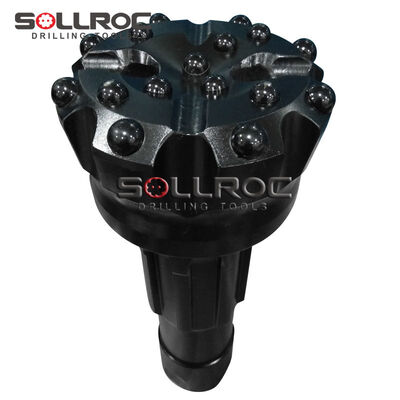

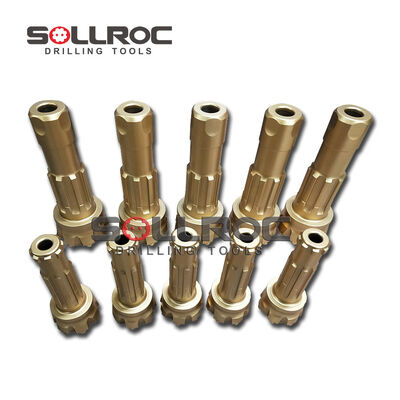

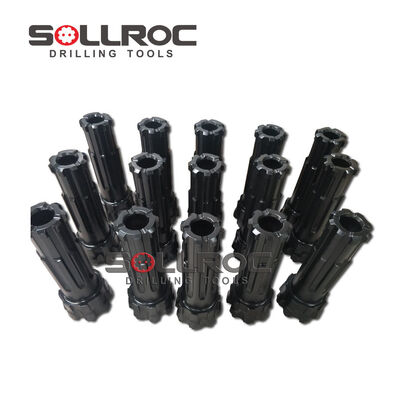

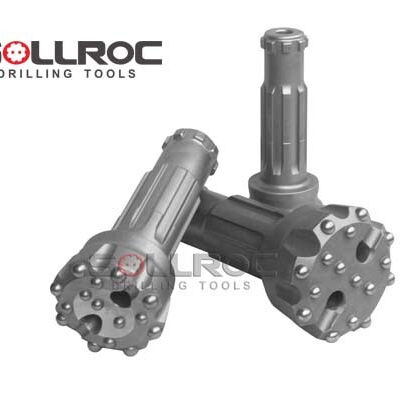

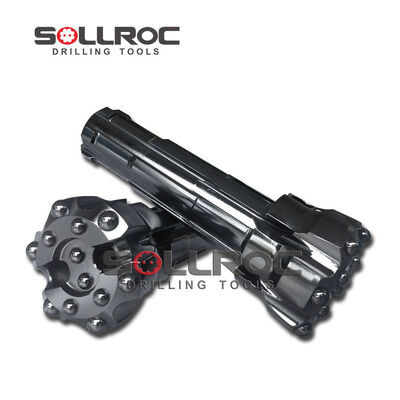

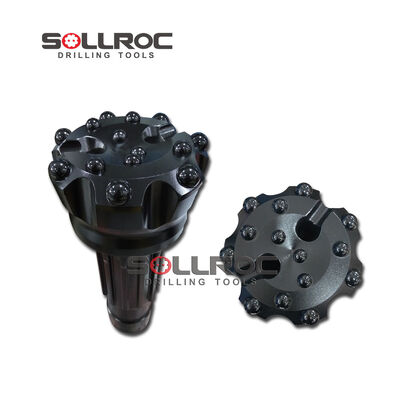

Product Images
4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 0 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 1 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 2 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 3 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 4 4''-125mm Carburized Steel DTH Drill Bits for Water Well Drilling and Mining 5
