| 重さ: | 25 kg | 材料: | 炭化鋼 |
|---|---|---|---|
| 処理型: | 鍛造 | 直径: | 6インチ |
| 顔の形: | 平面,凸,凸 | ボタンタイプ: | 球状、放物線、弾道 |
| ビット径(mm): | 152 | ビット径(インチ): | 6 " |
| エア・ホース: | 2 | ゲージボタン: | 8×φ18 |
| 前方のボタン: | 4×φ16+4×φ14 | パート番号: | HD65-152 |
| パッキング: | 合板ケース | 生産時間: | 15 -25 日 |
| 交通機関: | による空気によって、明白または海 | ||
| ハイライト: | 6 inch DTH Hammer Bits,Carburized steel DTH Drill Bits,1 Year Warranty DTH Button Bits |
||
We are a leading manufacturer of rock drilling tools, specializing in DTH hammers and bits, DTH drill pipes, RC hammers, and button bits. Located in Changsha, Hunan, China, we have 20 years of experience in the field. Our commitment to high quality, professional service, and competitive pricing has earned us an excellent reputation among customers worldwide, including France, Spain, Italy, South Africa, Australia, Iran, and Malaysia.
DTH hammers and bits are widely used in:
Key advantages include high flatness, smooth hole walls, rigid drill rods, independent high axial thrust, unlimited drilling depth, low device costs, and easy maintenance.

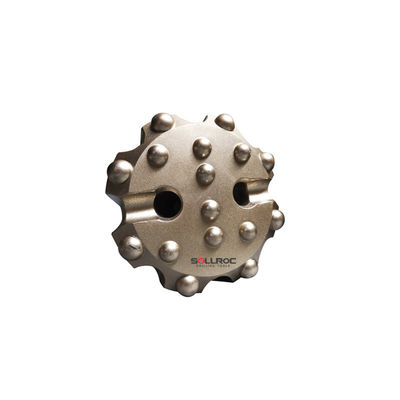

6 inch Drill bit, DHD360 DTH bit
| 6" Shank Bits | Bit Dia (mm) | Bit Dia (inch) | Air Hose | Gauge Buttons | Front Buttons | Part No |
|---|---|---|---|---|---|---|
| DHD360 | 152 | 6" | 2 | 8×φ18 | 4×φ16+4×φ14 | HD65-152 |
| DHD360 | 156 | 6 1/8" | 2 | 8×φ18 | 4×φ16+4×φ14 | HD65-156 |
| DHD360 | 160 | 6 5/16" | 2 | 8×φ18 | 4×φ16+4×φ14 | HD65-160 |
| DHD360 | 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | HD65-165 |
| DHD360 | 171 | 6 3/4" | 2 | 8×φ18 | 10×φ16 | HD65-171 |
| DHD360 | 185 | 7 1/4" | 2 | 9×φ18 | 10×φ16 | HD65-185 |
| DHD360 | 190 | 7 1/2" | 2 | 10×φ18 | 13×φ16 | HD65-190 |
| DHD360 | 203 | 8" | 2 | 10×φ18 | 14×φ16 | HD65-203 |
Our hammers are manufactured from high-quality steel, with all components undergoing strict inspection before shipping. We respond promptly to any complaints or suggestions.
Products are packed in plywood cases and pallets for export to ensure protection during transportation. Custom packaging solutions are available upon request.
Standard production time is 15-25 days.
We offer shipping by air, express, or sea according to customer requirements.
