| タイプ: | ドリルビット | 材料: | 浸炭鋼および超硬 |
|---|---|---|---|
| 直径範囲: | 57mm～660mm | 顔の形: | 平面,凸,凸 |
| ボタンタイプ: | 球状、放物線、弾道 | 岩石の硬さ: | 200MPa～260MPa |
| ハンマーインチ: | 12"への1つ | ビット径範囲: | 64mm～508mm |
| すねのタイプ: | BR1、MACH20/BR2、M30/DHD3.5/BR3、COP44/DHD340/MACH44、SD4/M40/QL40/BR4、COP54/DHD350R/MACH50、SD5/M50/QL50 | 掘削深度: | 制限なし |
| 穴の直径: | 105mm～254mm | 空気圧: | 高気圧 |
| 圧縮強度: | 200MPa～260MPa | 洗浄能力: | 良い |
| 浸透率: | 高い | ||

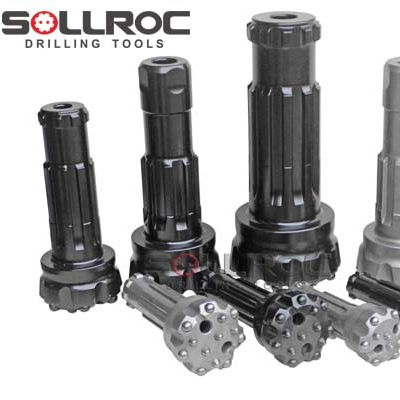

| ハイライト: | 57mm to 660mm DTH Drill Bits,Carburized Steel and carbide Button Bits,High Performance DTH Hammer Drill Bits |
||

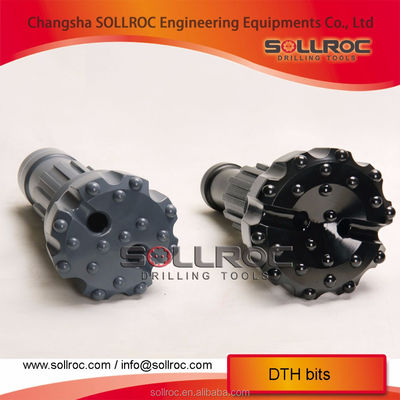

DTH drilling tools are widely used in underground mining, quarries, hydraulic and hydro-power engineering, water well drilling, mineral exploration, anchoring hole drilling, geothermal engineering, subway excavation, and other civil engineering applications. These tools offer high flatness, smooth hole walls, rigid drill rods and hammers, independent high axial thrust, unlimited drilling depth, low device costs, and easy maintenance. They are particularly effective for drilling holes with diameters between 105mm and 254mm.
| Hammer Inch | Bit Dia (mm) | Bit Dia (inch) | Shank |
|---|---|---|---|
| 1" | 64mm-70mm | 2 1/2-2 3/4" | BR1 |
| 2" | 70mm-95mm | 2 3/4-3 3/4" | MACH20/BR2 |
| 3" | 90mm-102mm | 3 1/2-4" | M30/DHD3.5/BR3 COP32/COP34/MACH303 |
| 4" | 105mm-152mm | 4 1/8-6" | COP44/DHD340/MACH44 SD4/M40/QL40/BR4 |
| 5" | 133mm-165mm | 5 1/4-6 1/2" | COP54/DHD350R/MACH50 SD5/M50/QL50/BR5 |

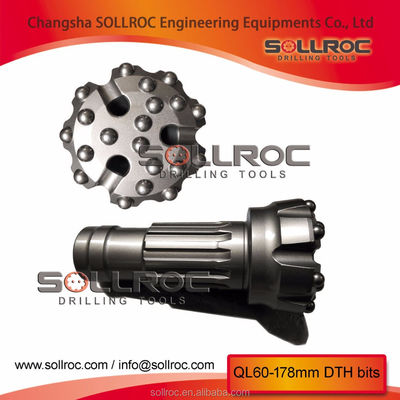

| 6" | 152mm-254mm | 4 1/8-10" | COP64/DHD360/SD6 M60/QL60/Bulroc BR6 |

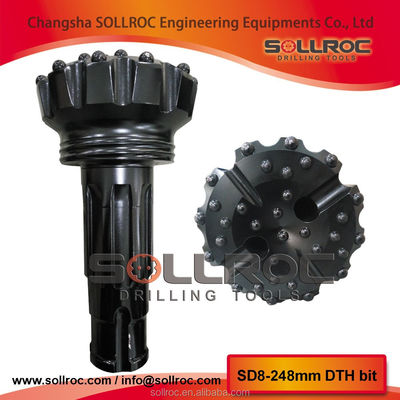

| 8" | 203mm-330mm | 8-13" | COP84/DHD380/SD8/QL80/M80 |
| 10" | 254mm-380mm | 10-15" | SD10/NUMA100 |
| 12" | 305mm-508mm | 12-20" | DHD1120/SD12/NUMA120/NUMA125 |

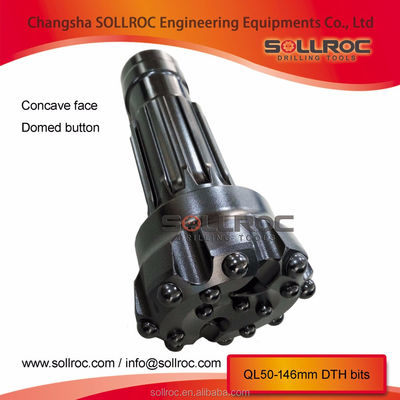

Concave: For medium-hard and homogeneous rock formations. Provides good hole deviation control and excellent flushing capacity.
Convex: For high penetration rates in soft to medium-hard formations with low to medium air pressure. Offers the most resistance to steel wash and may reduce load and wear on gauge buttons, though with less hole deviation control.
Flat face: Suitable for hard to very hard and abrasive rock formations in high air pressure applications. Delivers good penetration rates and resistance to steel wash.
Packaging options include ply-wooden cases or ply-wooden cases with pallets. Transportation available by sea, air, or express.
