| 重さ: | 25 kg | 材料: | 炭化鋼 |
|---|---|---|---|
| 処理型: | 鍛造 | 直径範囲: | 3.5 ～ 12 インチ (90mm ～ 305mm) |
| 顔の形: | 平面,凸,凸 | ボタンタイプ: | 球状、放物線、弾道 |
| エア・ホース: | 2、3、4 | 計測ボタン: | 6×φ14、7×φ13、7×φ14、8×φ14、7×φ16、7×φ18、8×φ18、9×φ18、10×φ18、11×φ18、12×φ18 |
| 前方のボタン: | 5×φ13、6×φ13、6×φ14、7×φ14、8×φ14、8×φ16、9×φ16、12×φ16、17×φ16、29×φ16 | 部品番号: | M40-105、M40-110、M40-115、M40-120、M40-127、M50-130、M50-140、M50-146、M50-152、M50-165、M60-152、M60-165、M60- |
| 岩石の硬さ: | 200MPa～260MPa | ビット径(mm): | 105、110、115、120、127、133、140、146、152、165、178、190、203、195、216、254、305 |
| ビット径(インチ): | 4 1/8"、4 1/4"、4 1/2"、4 3/4"、5"、5 1/4"、5 1/2"、5 3/4"、6"、 | 圧縮強度: | 200MPa～260MPa |
| 掘削深度: | 制限なし | ||

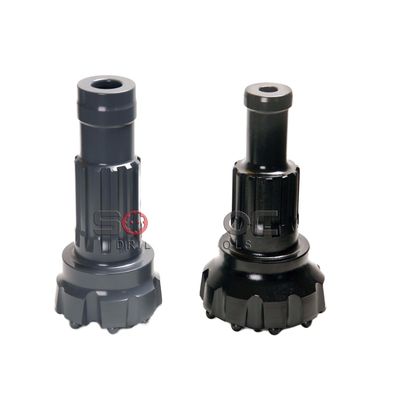

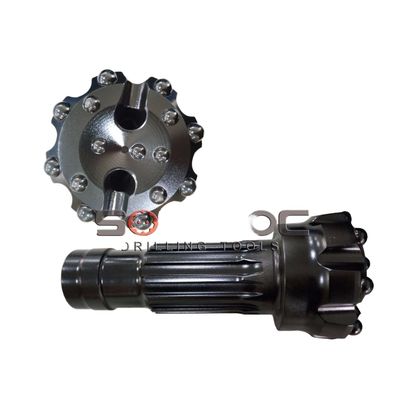

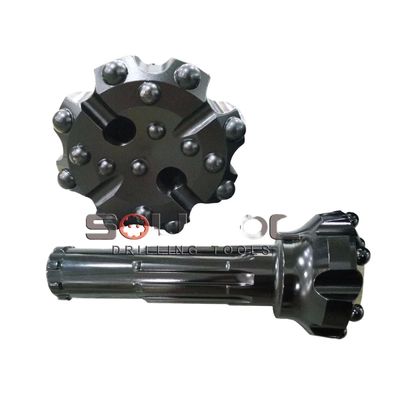

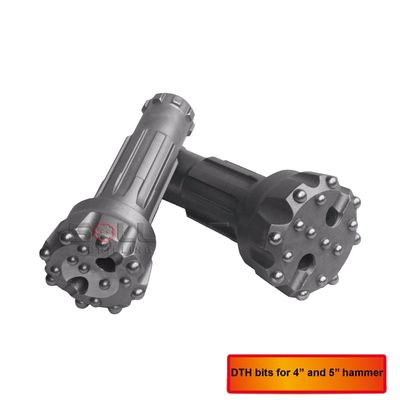

| ハイライト: | M30 M40 M50 M60 M80 Shank DTH Drill Bits,3.5 - 12 Inch Down The Hole Drill Bits,Carburized Steel Button Bits |
||

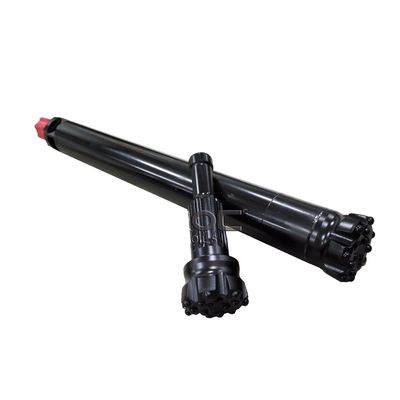

DTH hammers and bits are widely used in underground mining, quarries, hydraulic and hydro-power engineering, water well drilling, mineral exploration, anchoring hole drilling, geothermal engineering, subway excavation, and other civil engineering applications. They offer advantages including high flatness, smooth hole walls, high rigidity of drill rod and hammer, independent high axial thrust, unlimited drilling depth, low device costs, and easy maintenance.
| Mission Bits | Bit Dia (mm) | Bit Dia (inch) | Air Hose | Gauge Buttons | Front Buttons | Part No |
|---|---|---|---|---|---|---|
| Mission40 | 105 | 4 1/8" | 2 | 6×φ14 | 5×φ13 | M40-105 |
| 110 | 4 1/4" | 2 | 7×φ13 | 6×φ13 | M40-110 | |
| 115 | 4 1/2" | 2 | 7×φ14 | 6×φ13 | M40-115 | |
| 120 | 4 3/4" | 2 | 8×φ14 | 6×φ14 | M40-120 | |
| 127 | 5" | 2 | 8×φ14 | 7×φ14 | M40-127 | |
| Mission50 | 133 | 5 1/4" | 2 | 7×φ16 | 6×φ14 | M50-130 |
| 140 | 5 1/2" | 2 | 7×φ18 | 7×φ14 | M50-140 | |
| 146 | 5 3/4" | 2 | 8×φ18 | 7×φ14 | M50-146 | |

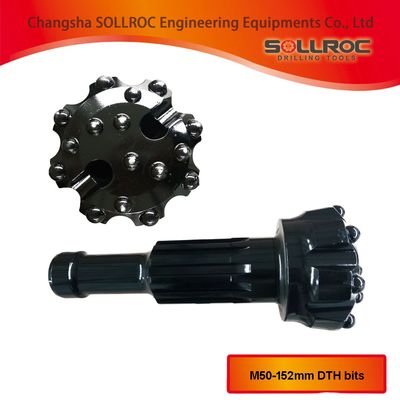

| 152 | 6" | 2 | 8×φ18 | 8×φ14 | M50-152 | |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | M50-165 | |
| Mission60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | M60-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | M60-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | M60-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | M60-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | M60-203 | |
| Mission80 | 195 | 7 11/16" | 3 | 9×φ18 | 9×φ16 | M80-195 |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | M80-203 | |
| 216 | 8 1/2" | 2 | 10×φ18 | 12×φ16 | M80-216 | |
| 254 | 10" | 3 | 11×φ18 | 17×φ16 | M80-254 | |
| 305 | 12" | 4 | 12×φ18 | 29×φ16 | M80-305 |
Delivery options: By sea, by air, or by express
