| 直径: | 5インチ | 重さ: | 15 kg |
|---|---|---|---|
| 材料: | 合金鋼 | 処理型: | 鍛造 |
| 顔の形: | 平面,凸,凸 | ボタンタイプ: | 球状、放物線、弾道 |
| 計測ボタン: | 8×φ14 | センターボタン: | 8×φ13 |
| 部品番号: | SRC040-127 | 穴あけ工具のタイプ: | RC ビット |
| マシンタイプ: | 掘削ツール | 使用: | 石炭鉱業 |
| 応用: | 石炭鉱業 | Moq: | 1ピース |
| 直径mm: | 127mm | ||
| ハイライト: | Alloy Steel RC Drill Bit,Sampling and Blasting RC Drill Bit,Forged RC Drill Bit |
||
We are a leading manufacturer of rock drilling tools, including DTH hammers and bits, DTH drill pipes, RC hammers and bits, top hammer button bits, couplings, cross bits, and drill rods, located in Changsha, Hunan, China. With 20 years of experience in DTH hammers and bits, we have earned a strong reputation worldwide for our high quality products, professional service, and competitive pricing. Our customers span across France, Spain, Italy, South Africa, Australia, Iran, Malaysia, and more.
RC drilling utilizes Dual Wall or Dual Tube Drilling technology. The system employs two rods with inner and outer tubes, where air is blown down the annulus of the rod to enter the hammer and bit. Rock fragments crushed by the bit are collected into the inner tube via air holes on the bit head and returned to the ground for sampling. Our RC hammers and bits are widely used in:

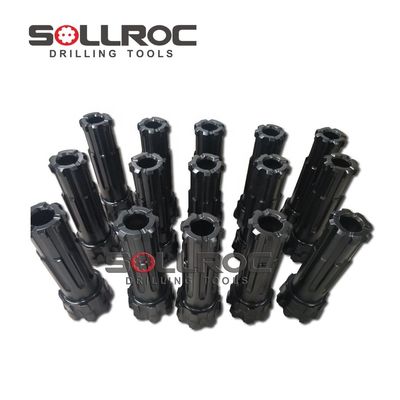

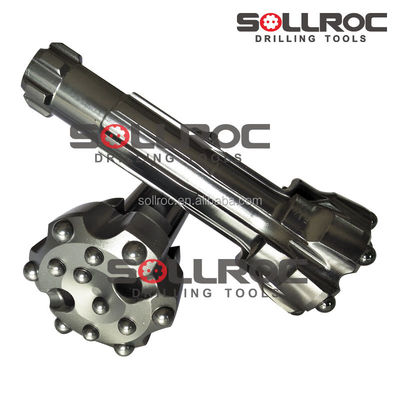

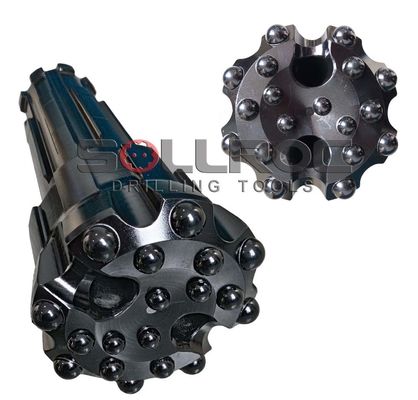

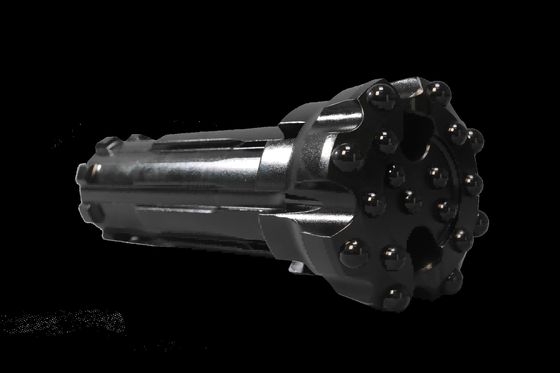

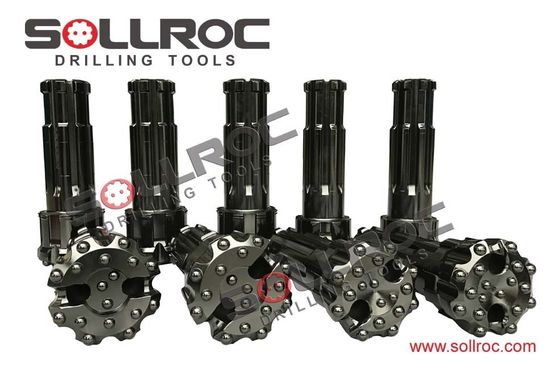

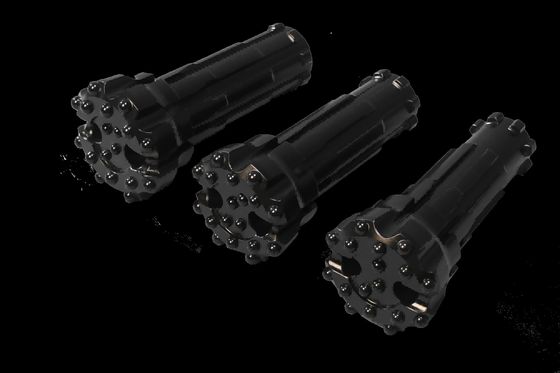

5-inch Drill Bit, RC Bits
| Item | Diameter | Gauge buttons | Centre buttons | Weight (kg) | Part No |
|---|---|---|---|---|---|
| SRC040 | 127mm | 8*φ14 | 8*φ13 | 11.0kg | SRC040-127 |
We primarily ship from Shanghai port, with Guangzhou and Shenzhen ports also available.
Yes, we accept both OEM and ODM requests.
MOQ is 1 piece or 1 complete set, with pricing dependent on order quantity.
We accept L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
Typically 15-25 days. For in-stock items, delivery takes 5-10 days.
Our hammers are constructed from high-quality steel with all components rigorously inspected before shipping. We provide prompt responses to all complaints and suggestions.
Products are packed in ply-wooden cases and pallets for export protection. Custom packaging solutions are available upon request.
Standard production time is 15-25 days.
We offer air, express, or sea shipping according to customer requirements.
