| 重さ: | 73のKG | 材料: | 炭化鋼 |
|---|---|---|---|
| 処理型: | 鍛造 | 直径: | 5インチ |
| ビット直径: | 120.5 mm | ビット重量: | 80.5kg |
| 長さ: | 1362 mm | 作業圧力: | 1.5-3.5 MPa |
| 穴の範囲: | φ124-φ142mm | 顔の形: | 平面,凸,凸 |
| ボタンタイプ: | 球状、放物線、弾道 | パッキング: | 合板ケース |
| マシンタイプ: | 掘削ツール | タイプ: | ドリルのハンマー |
| 使用: | よく掘削 | ||

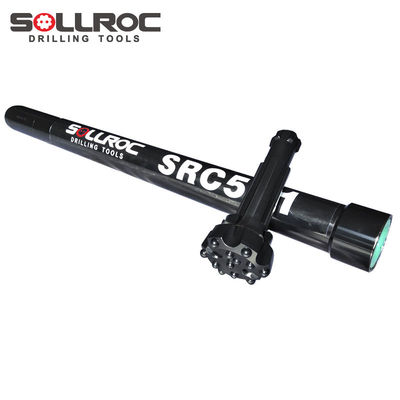

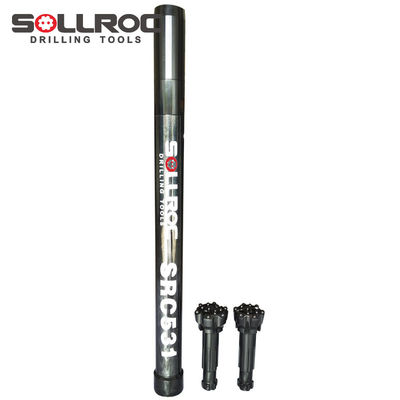

| ハイライト: | 120mm RC Rock Drill Hammer,5 Inch Down The Hole Hammer,Carburized Steel Drilling Tool |
||
We are a leading manufacturer of rock drilling tools, including DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, couplings, cross bits, and drill rods. Located in Changsha, Hunan, China, we have 20 years of experience in DTH hammers and bits manufacturing. Our commitment to high quality, professional service, and competitive pricing has earned us an excellent reputation among customers worldwide, including France, Spain, Italy, South Africa, Australia, Iran, Malaysia, and more.
RC drilling utilizes Dual Wall or Dual Tube Drilling technology. The system employs two rods with inner and outer tubes where air is blown down the annulus of the rod into the hammer and bit. Rock fragments crushed by the bit are collected into the inner tube via air holes on the bit head and returned to the surface for sampling. Our hammers and bits are widely used in:
| Item | Bit Diameter (mm) | Bit Diameter (inch) | Weight (kg) | Length | Working Pressure | Hole Range |
|---|---|---|---|---|---|---|
| SRC040 | 120.5mm | 5" | 80.5kg | 1362mm | 1.5-3.5Mpa | φ124-φ142 |
1) 20+ years experience in research, development, and manufacturing
2) High quality compatible with Sandvik, Atlas Copco, Ingersoll Rand
3) Competitive pricing
4) Excellent customer service
Primarily Shanghai port, with Guangzhou and Shenzhen ports also available
Yes, both OEM and ODM services are available
MOQ is 1 piece or 1 complete set (pricing varies by quantity)
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Typically 15-25 days (5-10 days if in stock)
Our hammers are manufactured from high-quality steel with all components undergoing strict inspection before shipping. We provide prompt responses to all complaints and suggestions.
Standard export packaging includes plywood cases and pallets for optimal protection during transportation. Custom packaging solutions available upon request.
Standard production time is 15-25 days.
Available shipping methods include air freight, express shipping, and sea freight.
