High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank

High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank
High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank

大画像 :  High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank

商品の詳細:
起源の場所: 中国湖南
ブランド名: SOLLROC
お支払配送条件:
最小注文数量: 1
価格: $1,500
連絡先

High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank

説明
重さ: 74.0kg 直径: 124.5mm
長さ: 1270mm シャンクタイプ: SRC547
穴の範囲: 130~146mm 接続スレッド: 4.5''lemet、4.5''metzke
作業圧力: 1.5-3.5Mpa 衝撃率: 35HZ
回転速度: 25〜40r/min 空気消費1.7MPA: 16m3/min
空気消費2.4MPA: 22m3/min 空気消費3.0MPA: 28m3/min
材料: 合金鋼、浸炭鋼 掘削直径: 150mm
掘削深度: 50-200m
ハイライト:

5.5inch Down The Hole Hammer

,

124.5mm Diameter RC Hammer

,

RE547 Shank DTH Hammer

High Air Pressure RC Reverse Circulation Hammer SRC547
Product Overview
Reverse circulation drilling (RC) is a drilling technique that allows samples to be retrieved with minimal contamination. Drilling is typically done using a down-the-hole, tricone, or triblade bit. The samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall. This quick execution technique is usually performed within a diameter of 150 mm and depths ranging between 50 and 200 meters.
Technical Specifications
Length (Without bit) Weight (Without bit) External diameter Bit Shank Hole range Connection thread
1270mm 74.0kg 124.5mm SRC547 130-146 4.5''Remet 4.5''Metzke
Working Pressure Impact rate at 2.4Mpa Recommend rotation speed Air consumption
1.5-3.5Mpa 35Hz 25-40r/min 1.7Mpa: 16m³/min 2.4Mpa: 22m³/min 3.0Mpa: 28m³/min
Key Features
  • Versatile across terrains: Compared with diamond drilling, Reverse Circulation drilling uses far less water, making it ideal for remote areas where water sourcing can be challenging. With approximately 40% lower operational costs, it's a reliable choice for complex and remote locations.
  • Reliable samples: The RC drilling method keeps samples free of cross-contamination as cuttings travel through the inner tube without exposure to other areas of the hole. Samples are precisely labeled by depth and location.
  • Workforce and time savings: Cover more ground in a day with rapid retrieval of drill cuttings and superior production rates compared to diamond core drilling. The small rig footprint eliminates the need for extensive earthworks.
Manufacturing Excellence
Our factory has specialized in manufacturing drilling tools and spare parts for over 10 years. We utilize advanced technology and equipment, with technicians boasting more than 13 years of professional experience.
Our hammers and bits are made of high-quality alloy steel with advanced heat treatment to ensure excellent drilling performance and long service life. All products are manufactured to international standards and are used by customers worldwide.
Packaging & Delivery
Packaging: Carton, ply-wooden cases + pallet
Delivery Options: By air, sea, or express
Product Images

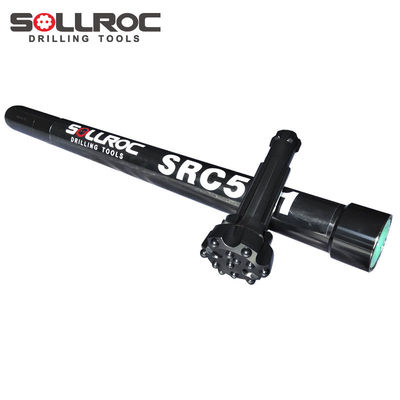

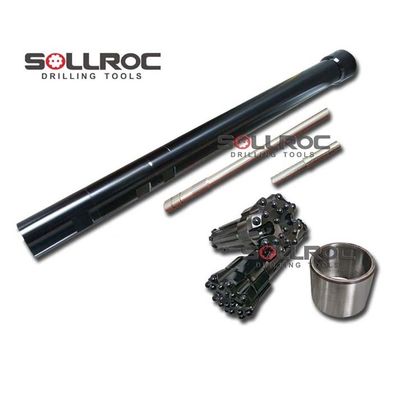

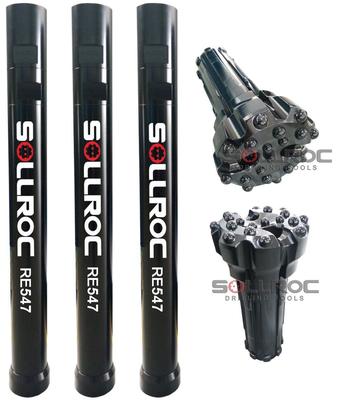

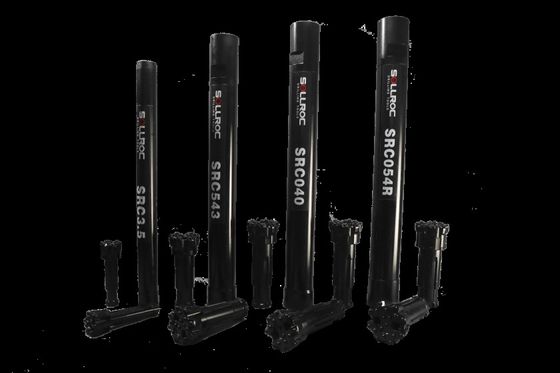

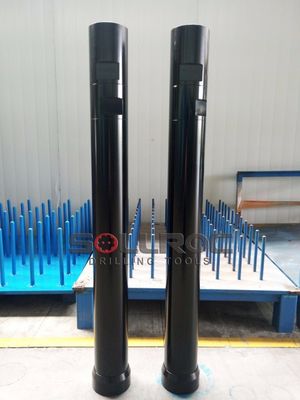

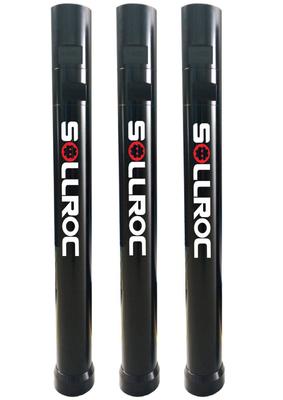

High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank 0 High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank 1 High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank 2 High Air Pressure 5.5inch Reverse Circulation Down The Hole Hammer with 124.5mm Diameter and RE547 Shank 3
